ATEN VB100 VGA Booster (1280 x 1024@70m)
CA$83.99
Save 4%
CA$80.31
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 70 meters away. The VGA booster extends the display distance without any signal loss; to bring you a crystal clear video display at a longer distance. The VB100 is built with a compact housing design for easy installation and manual gain control to improve image quality at different distances. The VB100 can be powered from the VGA source and has a built-in LED indicator for power. The VB100 supports hotplugging and requires no software forinstallation, making it an easy, compact, and affordable solution to extend your VGA display.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | VB100 |
| GTIN / Barcode | 0672792004209 |
| Brand Name | ATEN |
| Product Name | ATEN VB100 VGA Booster (1280 x 1024@70m) |
| Mfr. Part Number | VB100 |
|---|---|
| GTIN / Barcode | 0672792004209 |
| Features | |
| Type | AV repeater |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| LED indicators | Yes |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA) |
| Bandwidth | 300 MHz |
| Material | Metal |
| Impedance | 75 Ω |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |

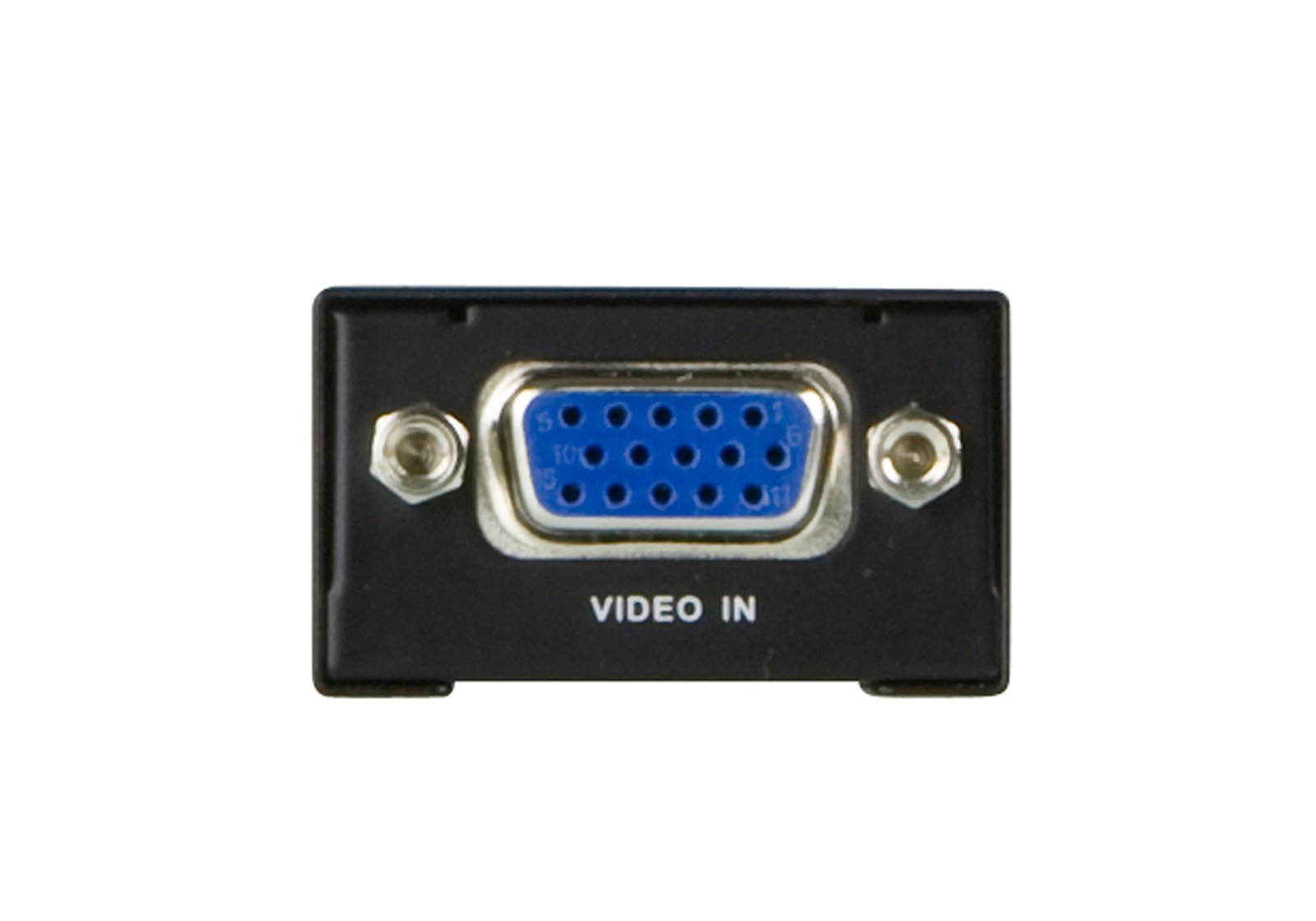

| VGA (D-Sub) input ports | 1 |

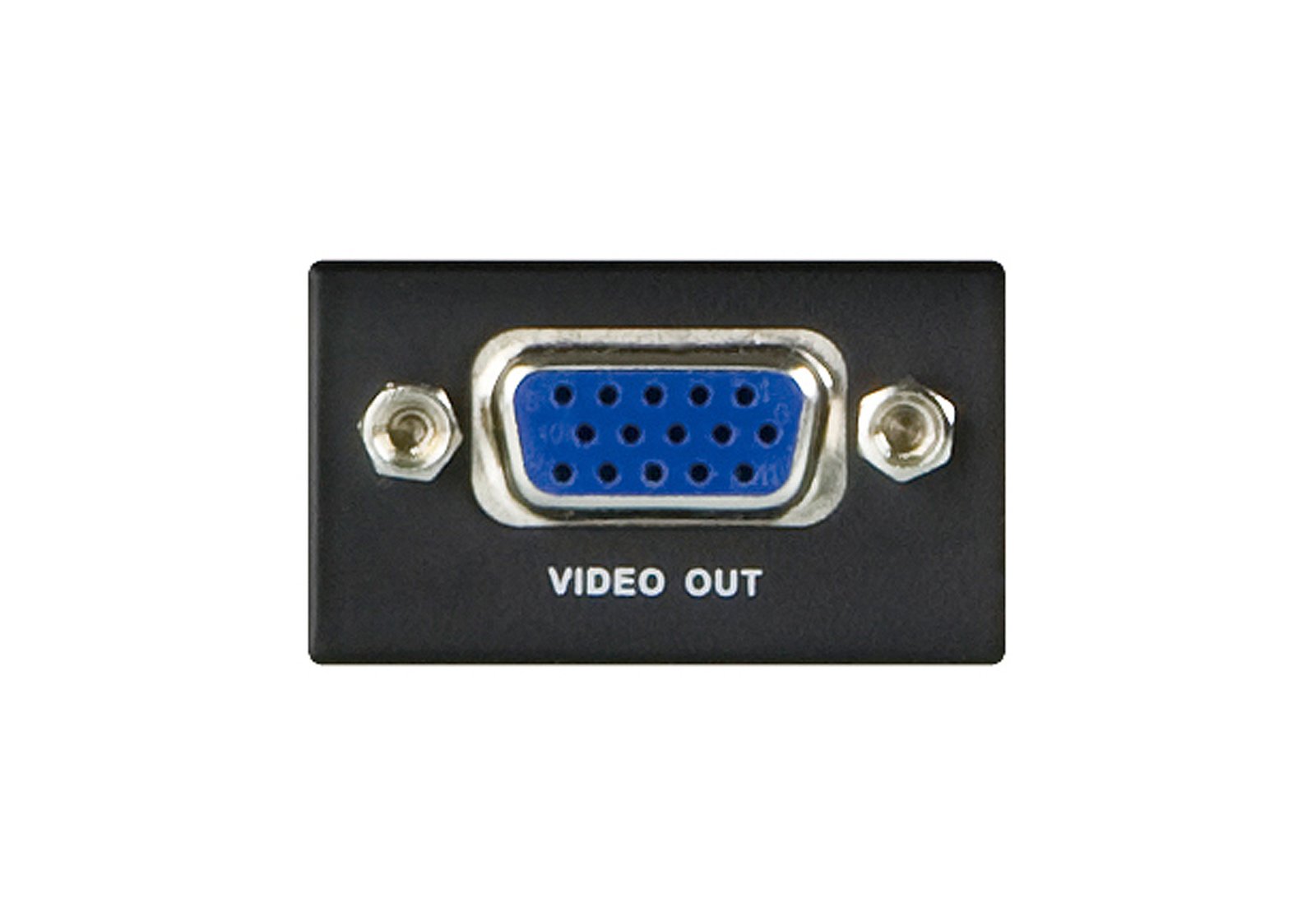

| VGA (D-Sub) output ports | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage | 5 V |
| Power consumption (typical) | 0.9 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 68.8 mm |
| Depth | 35.3 mm |
| Height | 20.6 mm |
| Weight | 60 g |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Computers & IT Hardware |
