ATEN
ATEN VE805R AV extender receiver Black
CA$645.99
Save 5%
CA$615.53
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details

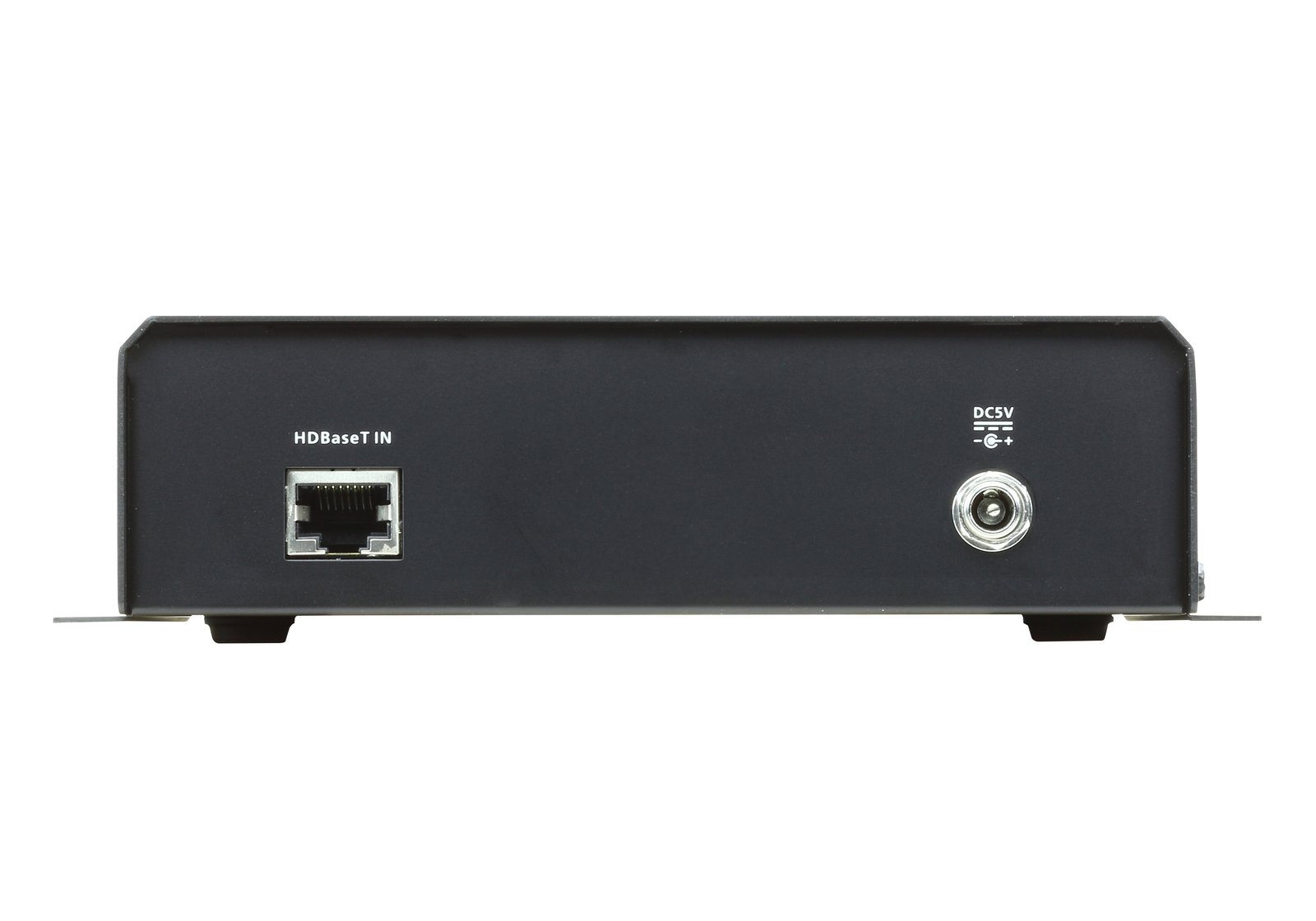

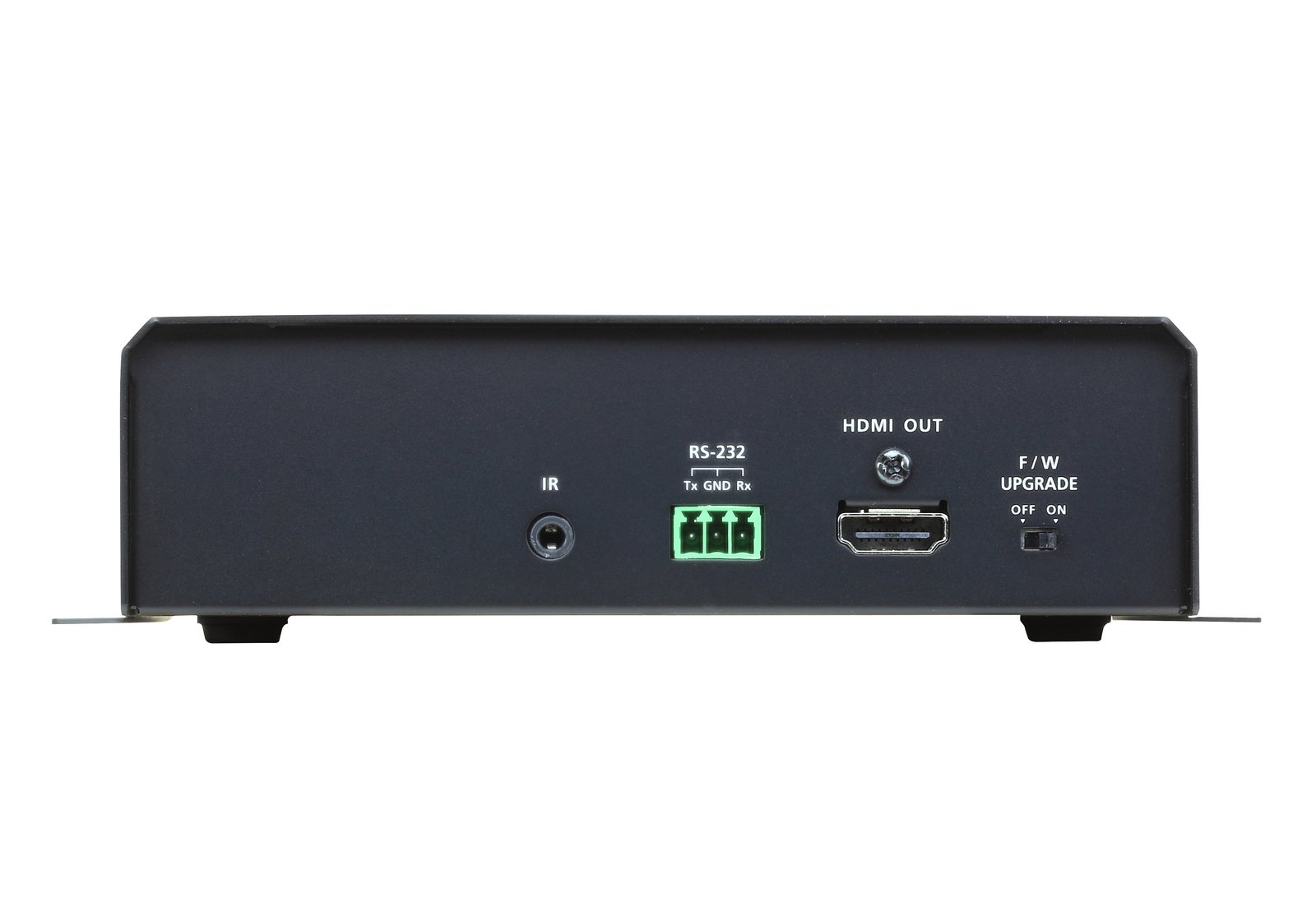

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | VE805R |
| GTIN / Barcode | 0672792006265 |
| Brand Name | ATEN |
| Product Name | ATEN VE805R AV extender AV receiver Black |
| Mfr. Part Number | VE805R |
|---|---|
| GTIN / Barcode | 0672792006265 |
| Features | |
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6a |
| Maximum transfer distance | 60 m |
| Supported video modes | 1080p |
| HDCP | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
| HDBaseT certified | Yes |
| Ports & interfaces | |
| HDBaseT port | Yes |
| HDMI in | 1 |
| RS-232 input ports | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage (receiver) | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 169.2 x 177.4 x 42 mm |
| Receiver weight | 810 g |
| Technical details | |
| Compliance certificates | RoHS |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Computers & IT Hardware |
