ATEN
ATEN VE816R AV extender receiver Black
CA$1,015.99
Save 5%
CA$967.83
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details

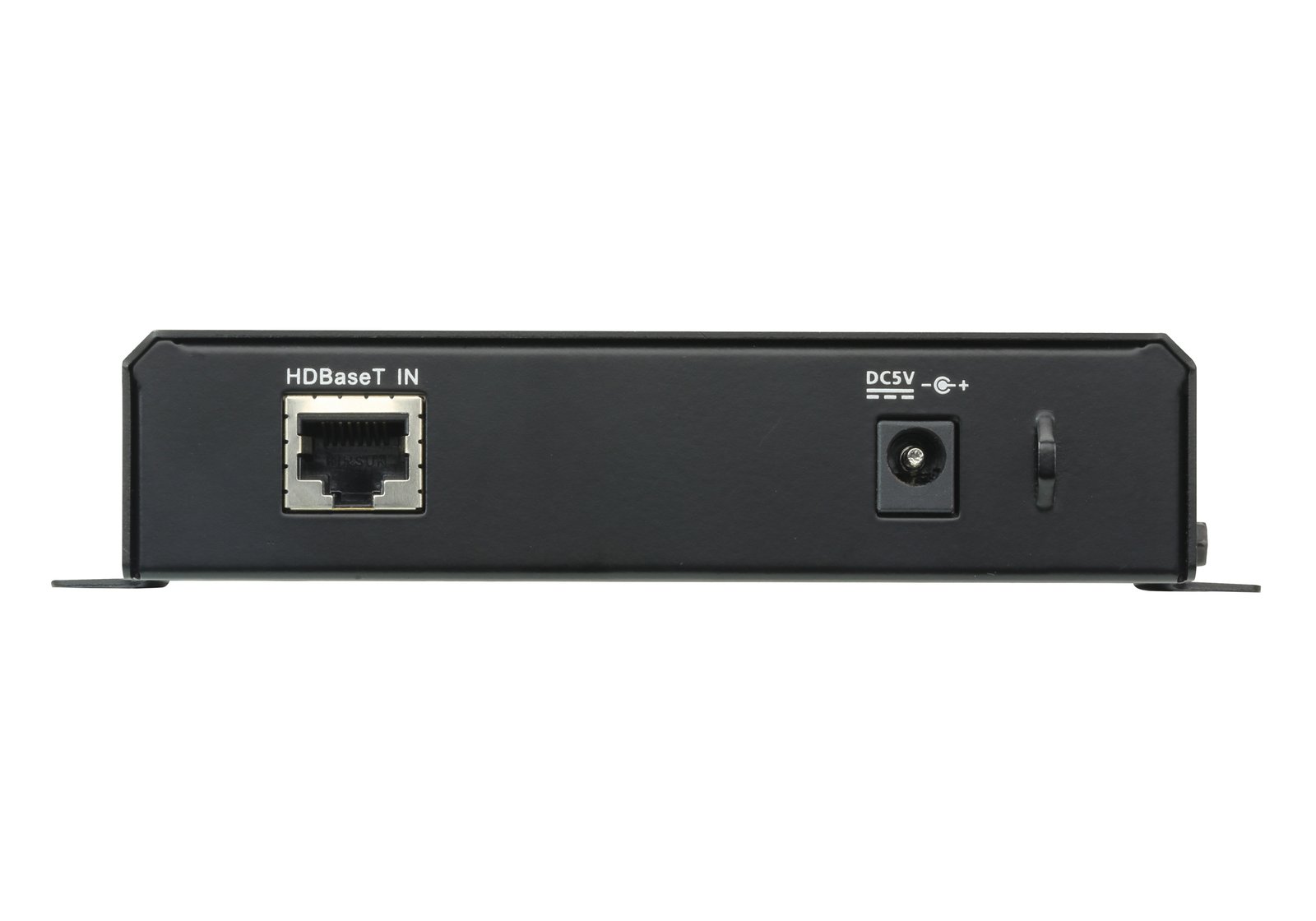

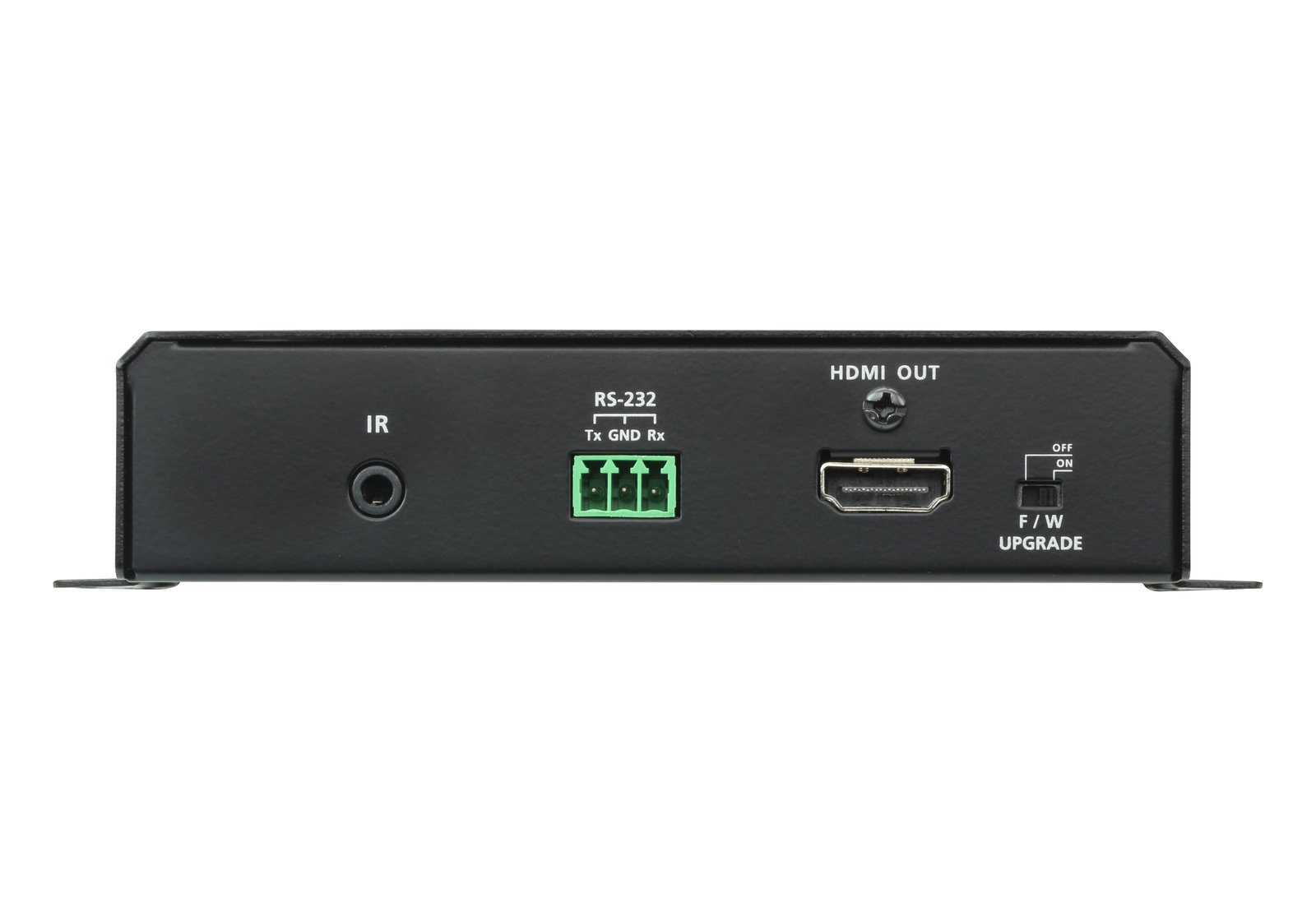

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display.
Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences.
Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | VE816R |
| Brand Name | ATEN |
| Product Name | ATEN VE816R AV extender AV receiver Black |
| Mfr. Part Number | VE816R |
|---|---|
| Features | |
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 150 m |
| Electrostatic Discharge (ESD) protection | 15 kV |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Plug and Play | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
| HDBaseT certified | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage | 5 V |
| Power consumption (typical) | 9.09 W |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 124.9 mm |
| Depth | 166 mm |
| Height | 29 mm |
| Weight | 670 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Computers & IT Hardware |
