ATEN VS0801H video switch HDMI
Product details

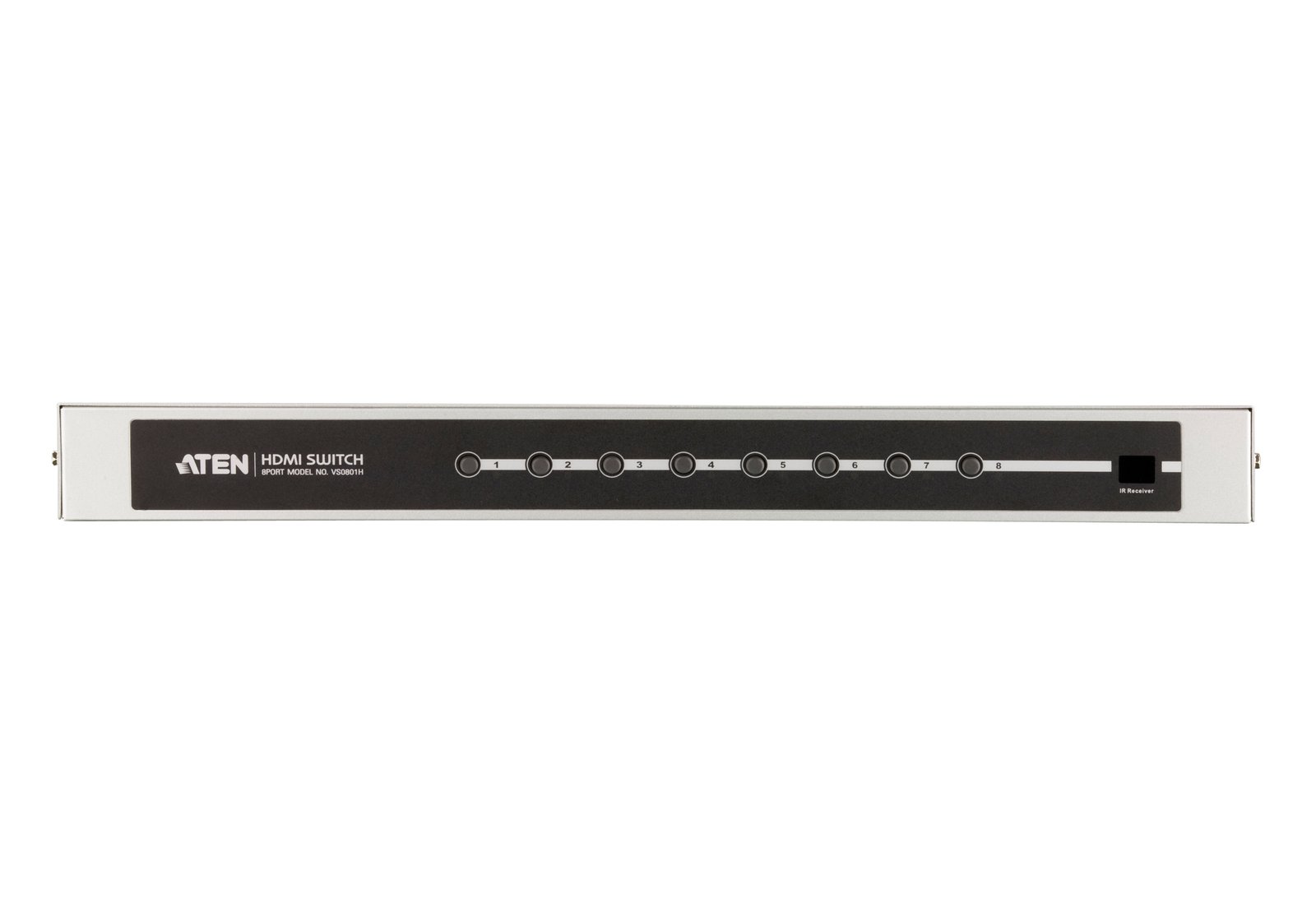

The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | VS0801H |
| Barcode | 0672792001901 |
| Brand Name | ATEN |
| Product Name | ATEN VS0801H video switch HDMI |
| Mfr. Part Number | VS0801H |
|---|---|
| Barcode | 0672792001901 |
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 9 |
| HDMI version | 1.4 |
| HDMI in | 8 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |

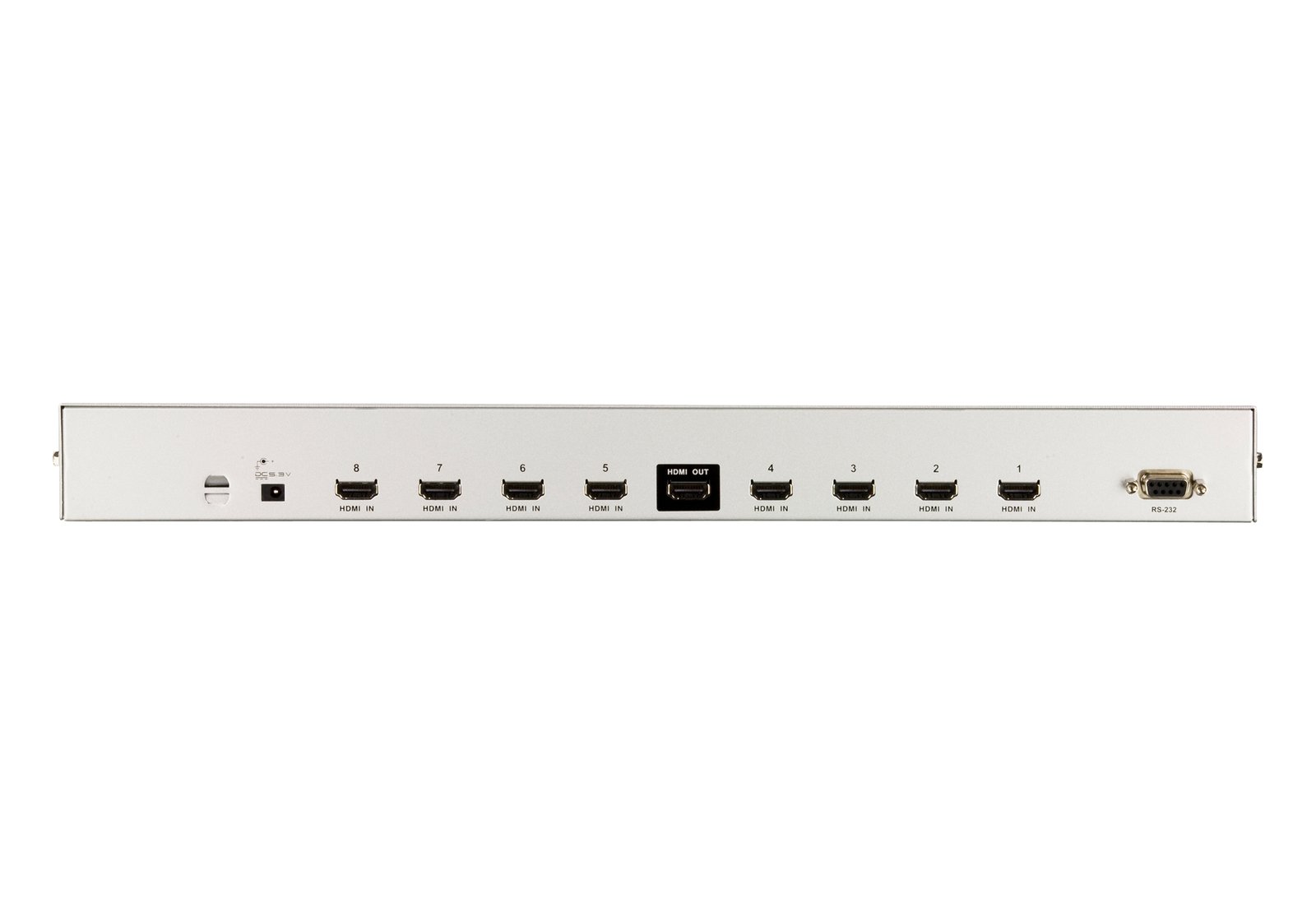

| Video in | 8 x HDMI Type A Female (Black) |
| Video out | 1 x HDMI Type A Female (Black) |
| DC-in jack | Yes |
| Features | |
| Material | Metal |
| Product colour | Black, Silver |
| Plug and Play | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 15 m |
| Rack mounting | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 480 (WVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| Maximum resolution | 1920 x 1080 pixels |
| 3D | Yes |
| HD type | Full HD |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| Power | |
| Power consumption (typical) | 3.71 W |
| Weight & dimensions | |
| Width | 437 mm |
| Depth | 159.8 mm |
| Height | 44 mm |
| Weight | 1.75 kg |
| Depth (imperial) | 16 cm (6.29") |
| Height (imperial) | 4.39 cm (1.73") |
| Width (imperial) | 43.7 cm (17.2") |
| Packaging content | |
| Remote control included | Yes |
| User guide | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
