/Brainboxes CB-534 serial converter/repeater/isolator RS-232 Black, Yellow
Brainboxes

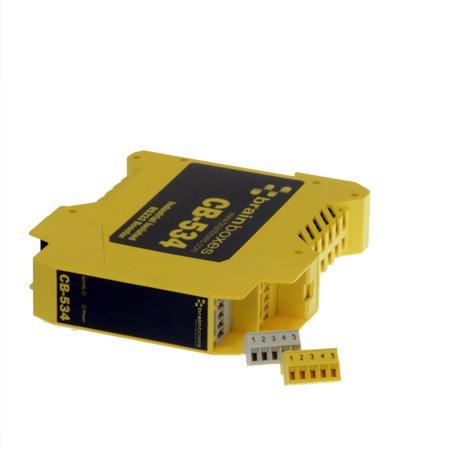

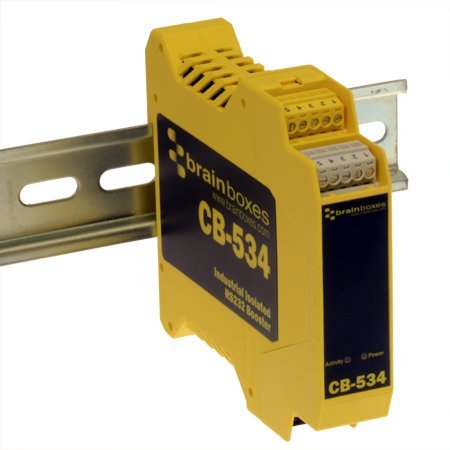

Brainboxes CB-534 serial converter/repeater/isolator RS-232 Black, Yellow
CA$405.99
Save 5%
CA$386.51
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
Booster for RS232 signal can extend cable length. Works with a wide voltage swing and outputs -11V to +11V signal making it suitable for legacy and non-conforming RS232 equipment. Provides isolation between two RS232 devices. This product doesn't require any software, simply connect using the easy-wire numbered terminal blocks.
Product Specifications
| Manufacturer | Brainboxes |
|---|---|
| Manufacturer Part Number | CB-534 |
| GTIN / Barcode | 0837324004045 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes CB-534 serial converter/repeater/isolator RS-232 Black, Yellow |
| Mfr. Part Number | CB-534 |
|---|---|
| GTIN / Barcode | 0837324004045 |
| Technical details | |
| Host interface | RS-232 |
| Output interface | RS-232 |
| Connector 1 | Terminal block |
| Connector 2 | Terminal block |
| Mounting | DIN-rail |
| RS-232 signals | CTS, RTS, RXD, TXD |
| Baud rate | 120 Kbit/s |
| Serial ports quantity | 2 |
| Product colour | Black, Yellow |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 23 mm |
| Depth | 114 mm |
| Height | 99 mm |
| Weight | 206 g |
| Package width | 49 mm |
| Package depth | 160 mm |
| Package height | 135 mm |
| Power | |
| Input voltage | 5 - 30 V |
| Power consumption | 110 mA |
| Material | |
| Housing material | Polyamide |
| Certificates | |
| Certification | Industry Approvals Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Manual | Yes |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Cables & Connectivity |
