Product Details

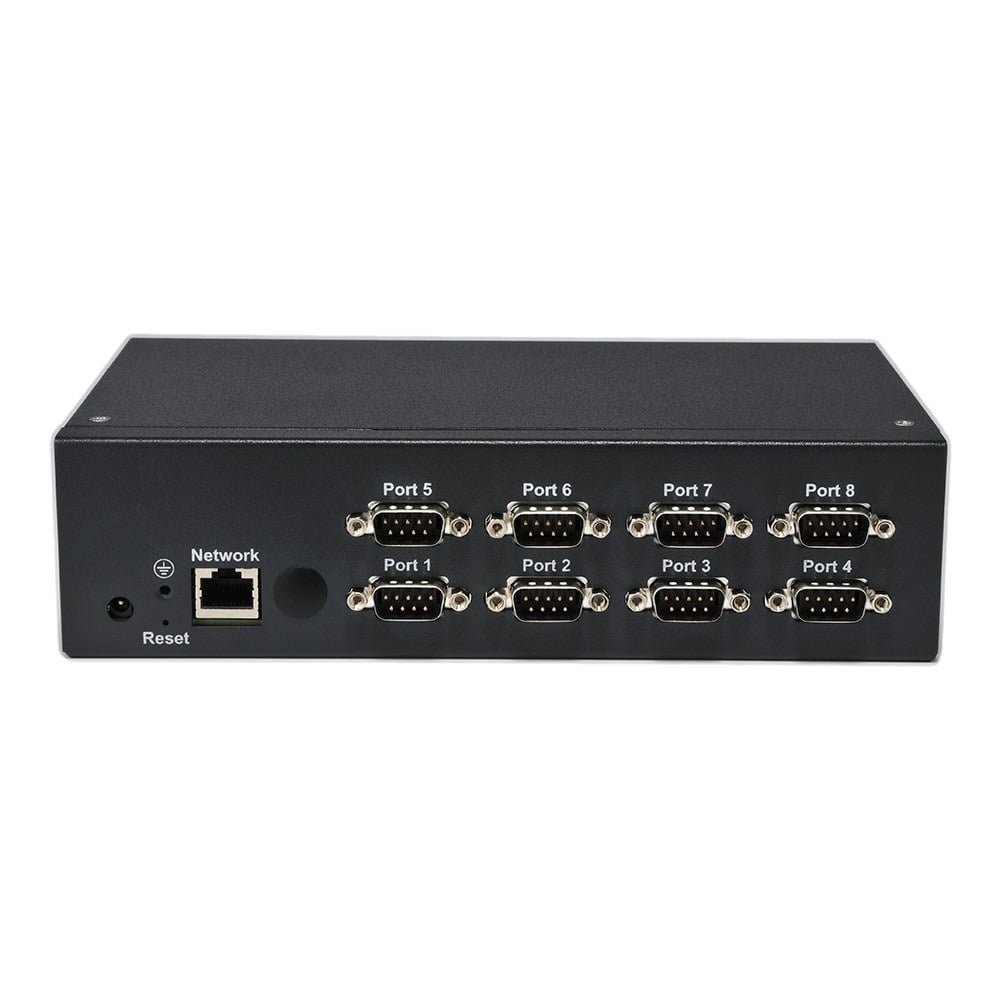

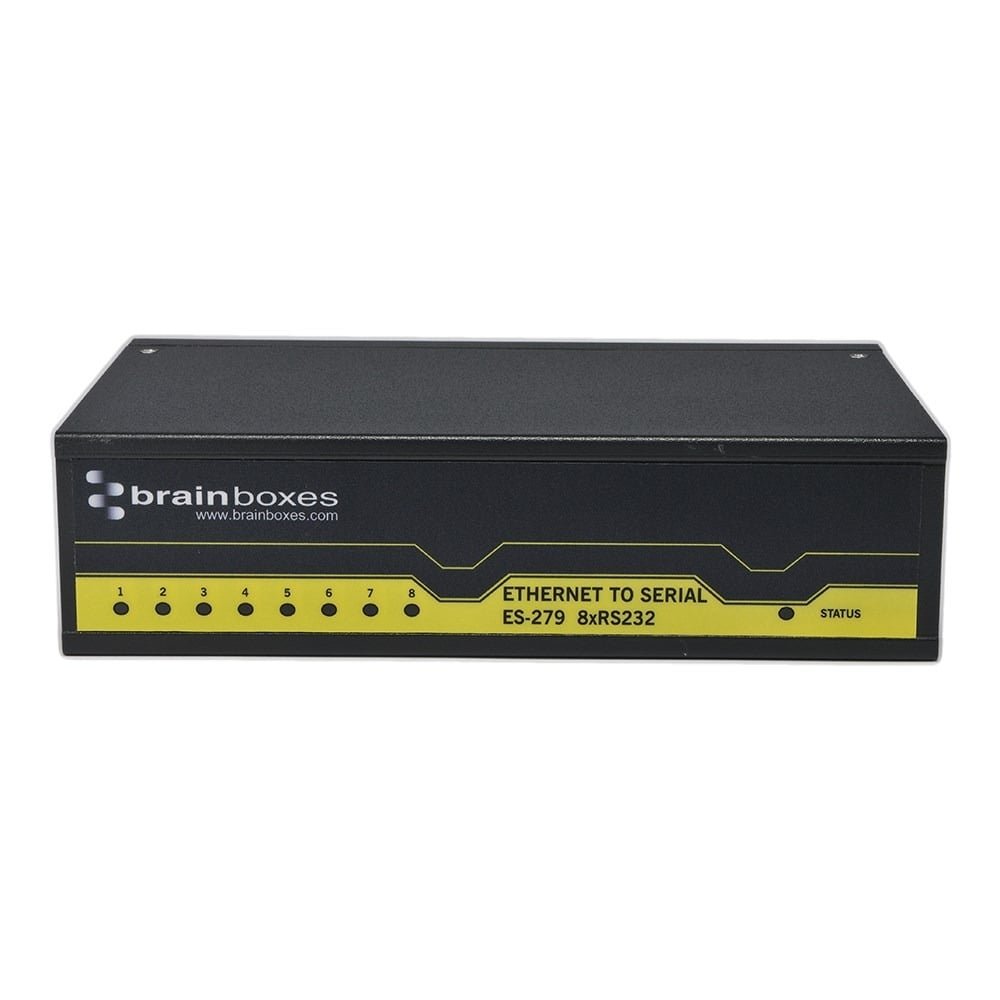

Ethernet to Serial device server providing access to 8 RS232 serial ports. Data transfer rates up to 1,000,000 baud rates (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values.Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Product Specifications
| Manufacturer | Brainboxes |
|---|---|
| Manufacturer Part Number | ES-279 |
| GTIN / Barcode | 8716065295023 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes ES-279 8 Port RS232 Ethernet to Serial Adapter |
| Mfr. Part Number | ES-279 |
|---|---|
| GTIN / Barcode | 8716065295023 |
| Technical details | |
| Serial ports quantity | 8 |
| Serial interface type | RS-232 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Flow control support | Yes |
| Baud rate | 1000000 Kbit/s |
| RS-232 signals | CTS, DSR, DTR, RTS |
| Compliance certificates | CE, Federal Communications Commission (FCC), KCC, UKCA, UL |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Cabling technology | 10/100Base-T(X) |
| Power | |
| Power consumption (typical) | 1.93 W |
| Input voltage | 5 - 30 V |
| Protocols | |
| Supported network protocols | TCP/IP |
| Indication | |
| LED indicators | Yes |
| Software | |
| Windows operating systems supported | Windows 7, Windows 8, Windows 8 x64, Windows 7 x64, Windows 10, Windows XP, Windows Vista, Windows Vista x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 215 mm |
| Height | 56 mm |
| Weight | 824 g |
| Dimensions (WxDxH) | 122.5 x 215 x 56 mm |
| Package width | 135 mm |
| Package depth | 300 mm |
| Package height | 80 mm |
| Package weight | 1.2 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Design | |
| Safety | IP-30 |
| Logistics data | |
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Networking & Communications |
