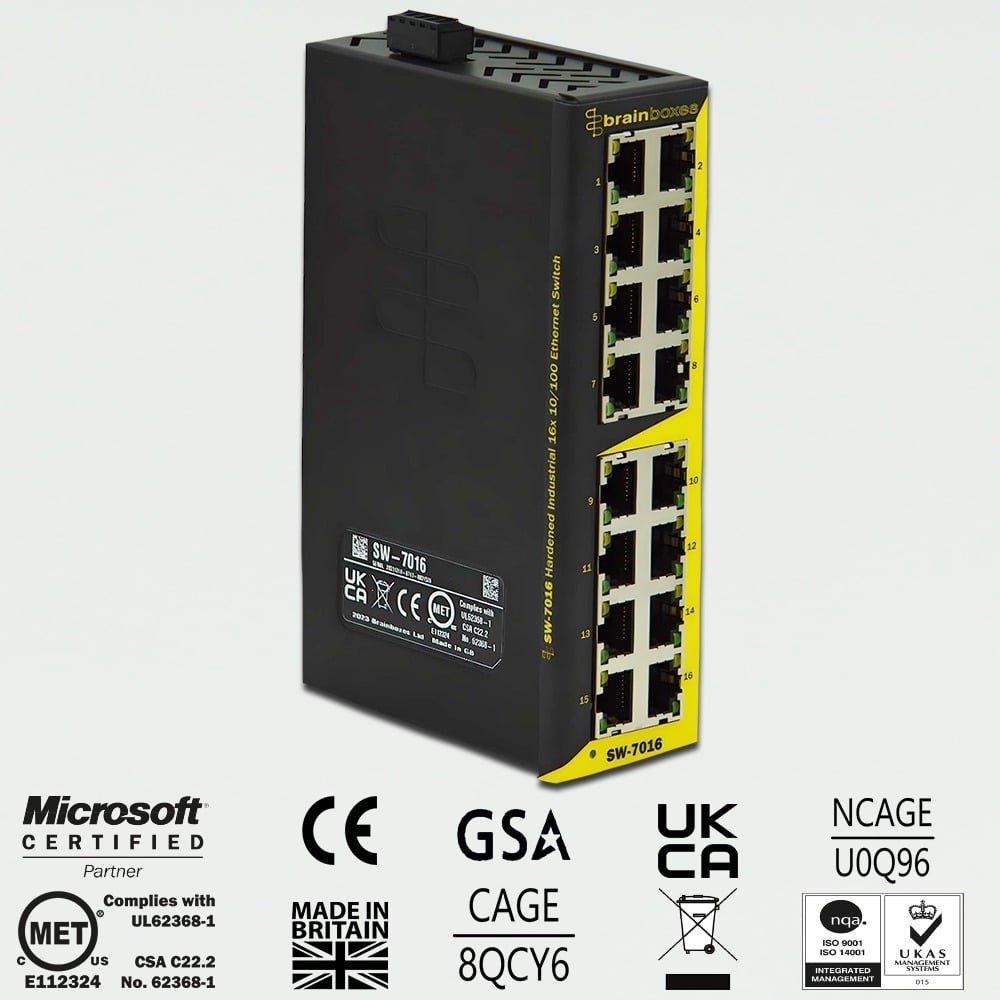

Name: Brainboxes Hard Industrial 16 Port 10/100 Ethernet Switch SW-7016
Brand: Brainboxes
SKU: SW-7016
Price: 347.70 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Networking & Communications /Network Switches /Brainboxes Hard Industrial 16 Port 10/100 Ethernet Switch

Product Details

Hardened Industrial 16x 10/100 Ethernet Switch - enables real-time communication between control units, sensors, and central monitoring systems; streamlining operations to improve efficiency and productivity.

16x Fast Ethernet 10/100 ports provide ample connectivity for expanding industrial automation networks without compromising performance.

Wide voltage input range (+5V to +30VDC) and dual redundant power inputs ensure reliability and reduce the risk of power outages.

Hardened industrial design and wide temperature range of -40°C to +80°C (-40°F to 176°F) for reliable operation in challenging environments, minimising the risk of downtime due to environmental factors.

Product Specifications

Manufacturer	Brainboxes
Manufacturer Part Number	SW-7016
GTIN / Barcode	0837324005196
Brand Name	Brainboxes
Product Name	Brainboxes Hard Industrial 16 Port 10/100 Ethernet Switch

Management features
Mfr. Part Number	SW-7016
GTIN / Barcode	0837324005196
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	16
Design
Form factor	DIN rail
Product colour	Black, Yellow
DIN rail mounting	Yes
Performance
Export Control Classification Number (ECCN)	5A991.b
Power
Power source	DC
Redundant power supply (RPS) support	Yes
DC input voltage	5 - 30 V
Power consumption (max)	3.8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 80 °C
Weight & dimensions

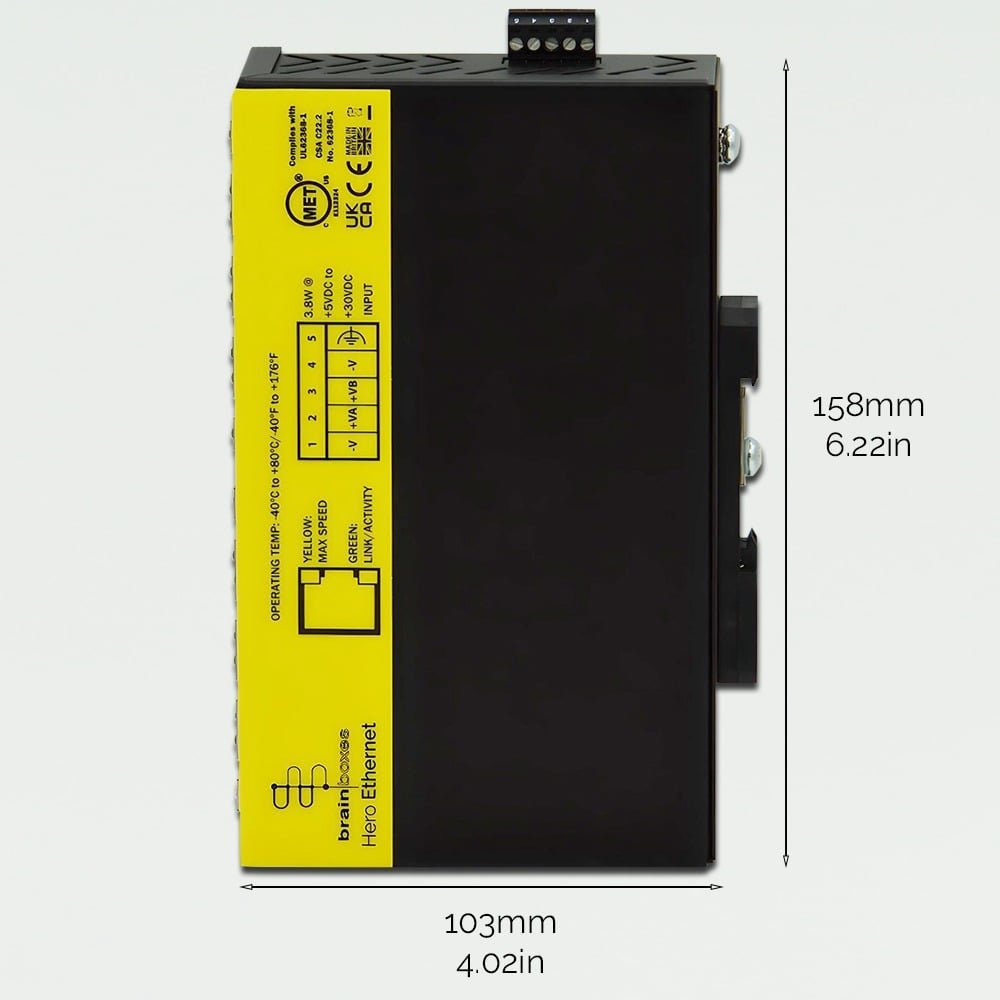

Width	158 mm
Depth	103 mm
Height	43 mm
Weight	530 g
Packaging data
DIN rail included	Yes
Package width	140 mm
Package depth	200 mm
Package height	80 mm
Package weight	670 g
Certificates
Compliance certificates	Federal Communications Commission (FCC), CE, UKCA
Logistics data
Harmonized System (HS) code	851762
Brand	Brainboxes
Availability	In Stock
Price Currency	CAD
Category	Network Switches
