Name: Brainboxes Industrial 5 Port PoE+ Gigabit Ethernet Switch SW-535
Brand: Brainboxes
SKU: SW-535
Price: 261.01 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Networking & Communications /Network Switches /Brainboxes Industrial 5 Port PoE+ Gigabit Ethernet Switch

Product Details

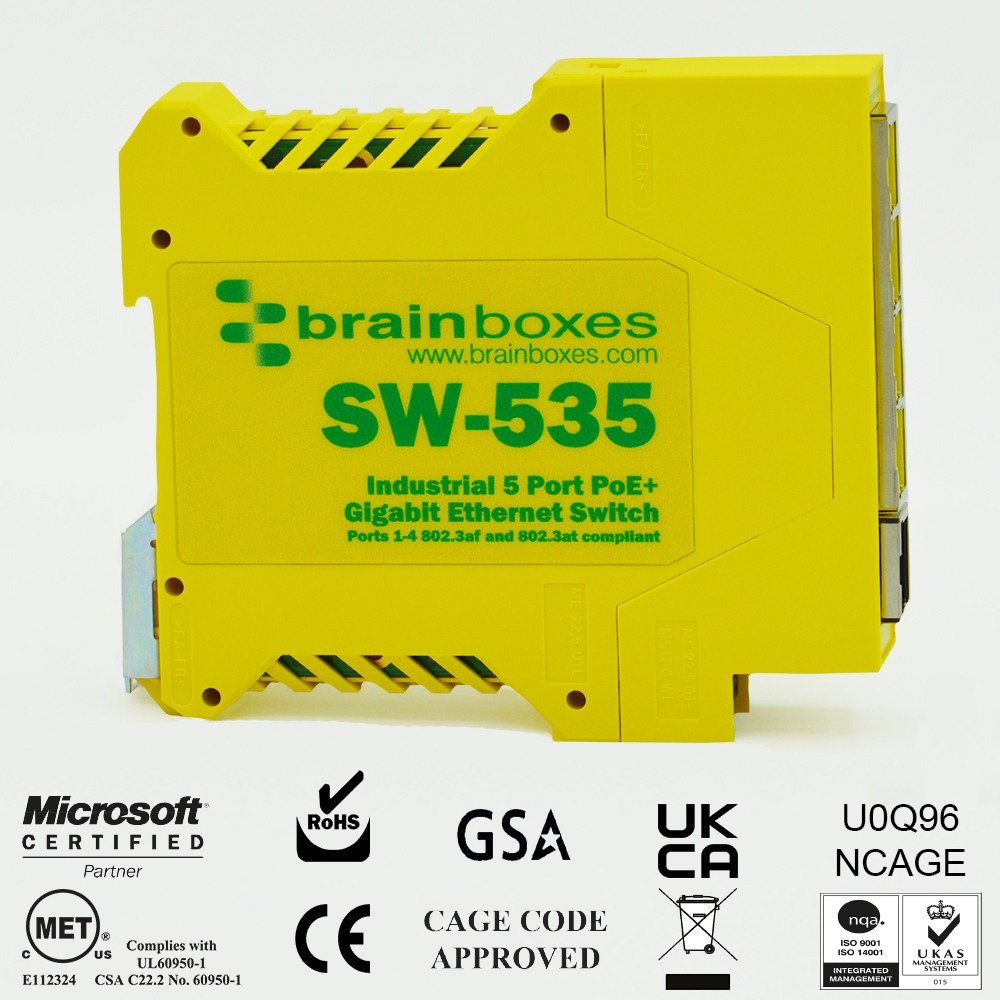

Industrial Compact 5 Port PoE+ Gigabit Ethernet device.

Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.

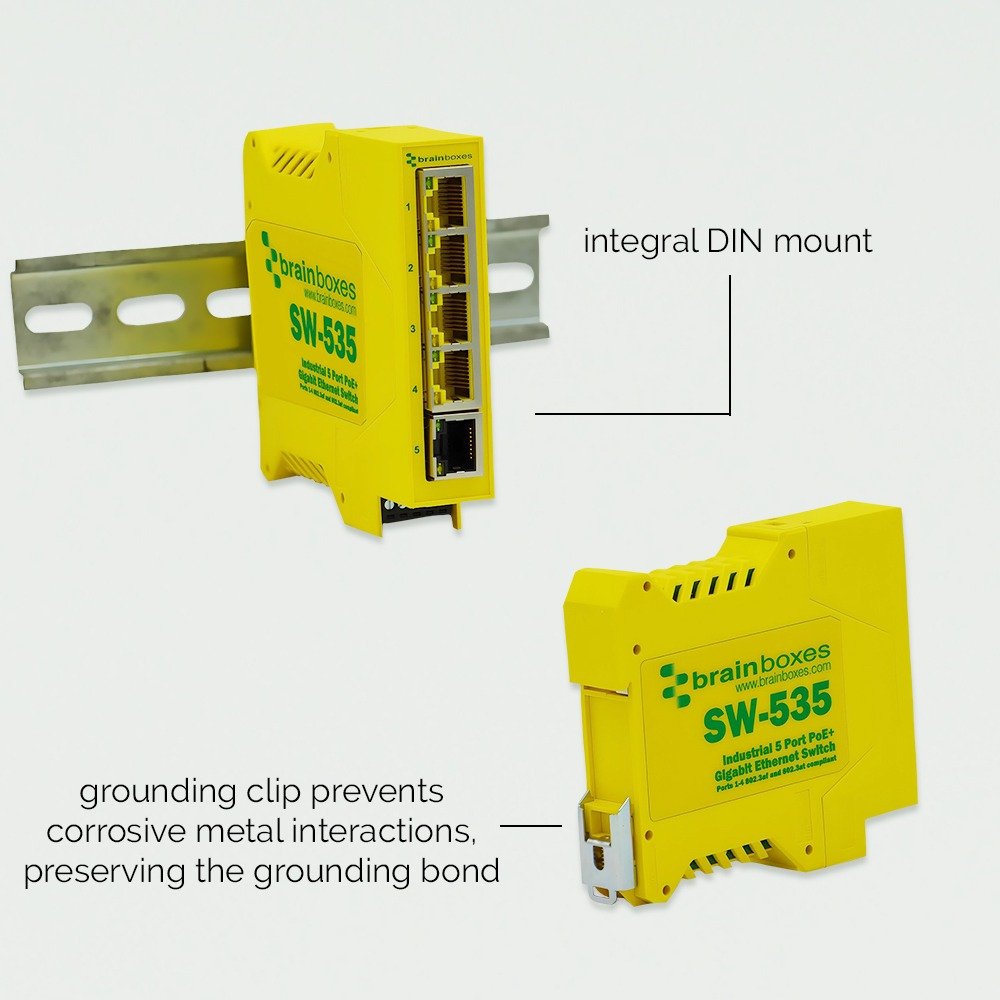

Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.

Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more.

Compatible DIN rail power supply available: PW-301

Product Specifications

Manufacturer	Brainboxes
Manufacturer Part Number	SW-535
GTIN / Barcode	0837324005073
Brand Name	Brainboxes
Product Name	Brainboxes Industrial 5 Port PoE+ Gigabit Ethernet Switch

Management features
Mfr. Part Number	SW-535
GTIN / Barcode	0837324005073
Switch type	Unmanaged
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Design
Rack mounting	No
Stackable	No
Form factor	DIN rail
Product colour	Yellow
DIN rail mounting	Yes
Performance
Export Control Classification Number (ECCN)	5A991.b
Power
Power source	DC/PoE
Power supply included	No
DC input voltage	44 - 57 V
Power consumption (max)	5.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Total Power over Ethernet (PoE) budget	90 W
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Width	0 mm
Depth	0 mm
Height	0 mm
Weight	233 g
Packaging content
Quick start guide	Yes
Packaging data
Package width	135 mm
Package depth	160 mm
Package height	49 mm
Package weight	240 g
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus
Logistics data
Harmonized System (HS) code	851762
Brand	Brainboxes
Availability	In Stock
Price Currency	CAD
Category	Network Switches
