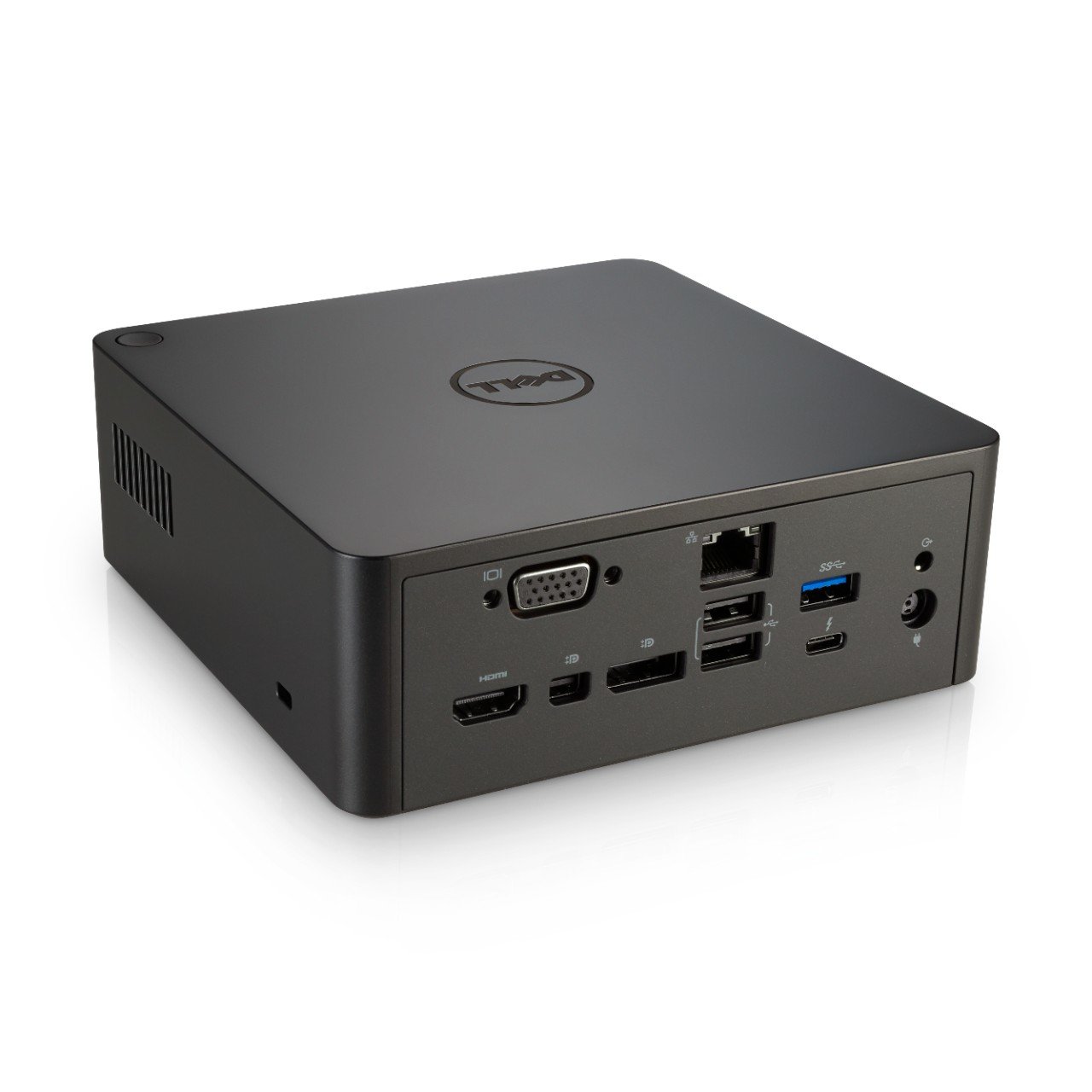

The Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace. * While Dell has committed to ensuring the TB16 meets open standards, 3rd party OEMs can limit compatibility
The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.
The Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power.
- Supports 3 displays - Two USB 2.0 ports - Three USB 3.0 ports - Thunderbolt 3 (USB-C) port - Speaker output (rear) - Combo audio (front) - Gigabit Ethernet - Kensington Lock Slot - 7.4 mm DC-IN Power Input
Product Specifications
Manufacturer
Dell
Manufacturer Part Number
452-BCNP
Brand Name
Dell
Product Name
DELL TB16 Wired Thunderbolt 3 Black
Mfr. Part Number
452-BCNP
Ports & interfaces
Connectivity technology
Wired
Host interface
Thunderbolt 3
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
1
Mini DisplayPorts quantity
1
Thunderbolt 3 ports quantity
1
Combo headphone/mic port
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm
Line-out
Yes
USB connector type
USB Type-A
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Card reader integrated
No
Product colour
Black
LED indicators
Yes
Brand compatibility
Dell
Compatibility
XPS 13 (9350)
XPS 12 (9250)
XPS 13 (9360)
Latitude 5280
Latitude 5480
Latitude 5580
XPS 9365
Latitude 7280
Latitude 7480
