MSI Systems
MSI Systems CUBI NUC 1M-011BUS PC/workstation barebone 0.84L sized PC Black 100U Intel SoC
CA$546.99
Save 5%
CA$521.10
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Product Specifications
| Manufacturer | MSI Systems |
|---|---|
| Manufacturer Part Number | CUBINUC1M011B |
| GTIN / Barcode | 0824142367520 |
| Brand Name | MSI Systems |
| Product Name | MSI CUBI NUC 1M-011BUS PC/workstation barebone 0.84L sized PC Black 100U Intel SoC |
| Mfr. Part Number | CUBINUC1M011B |
|---|---|
| GTIN / Barcode | 0824142367520 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core 3 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 100U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Built-in processor | Yes |
| Processor cache | 10 MB |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | DDR5-SDRAM |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2 |
| NVMe | Yes |
| Number of storage drives supported | 3 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® Graphics |
| Number of displays supported | 4 |
| Performance | |
| Motherboard form factor | NUC |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I226-V |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

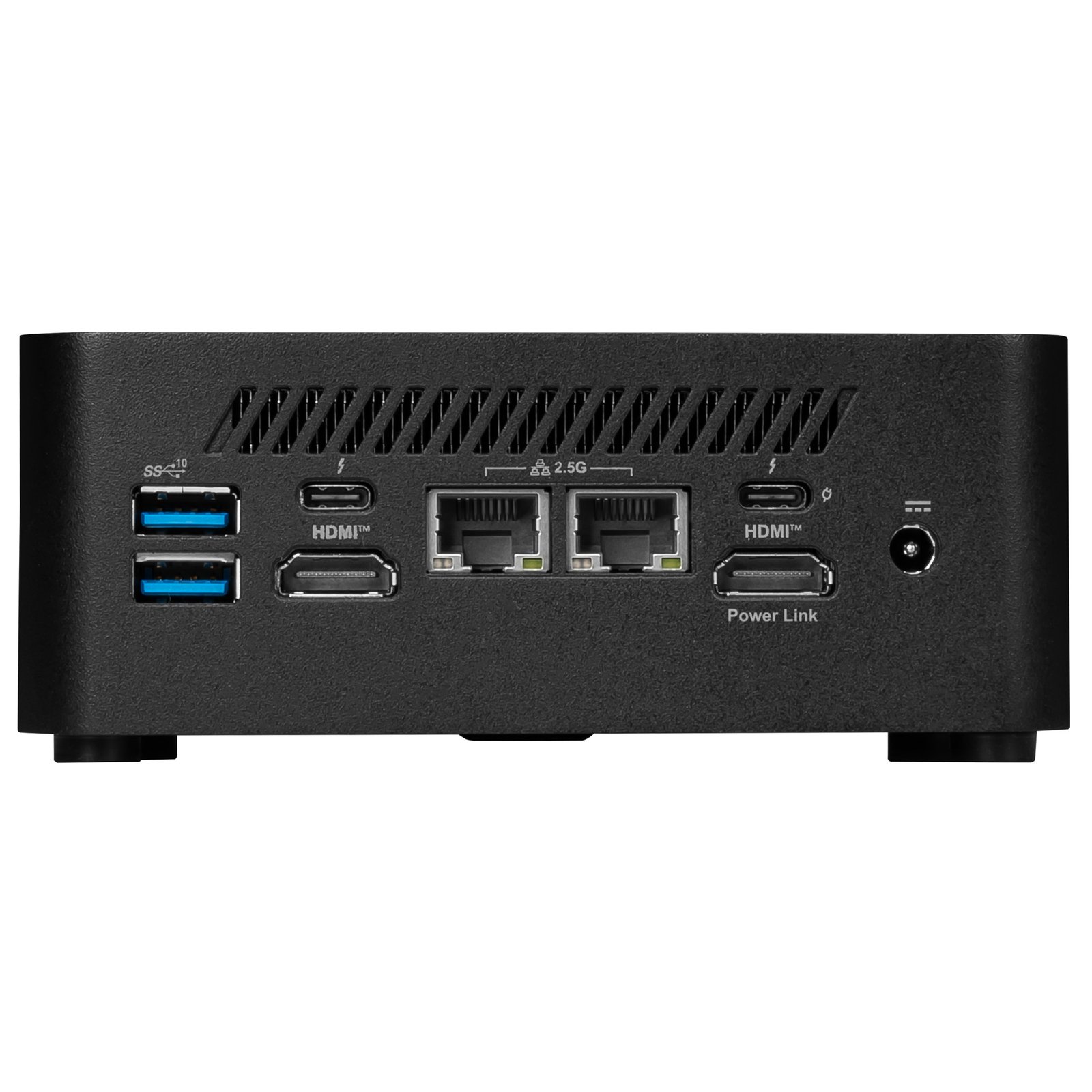

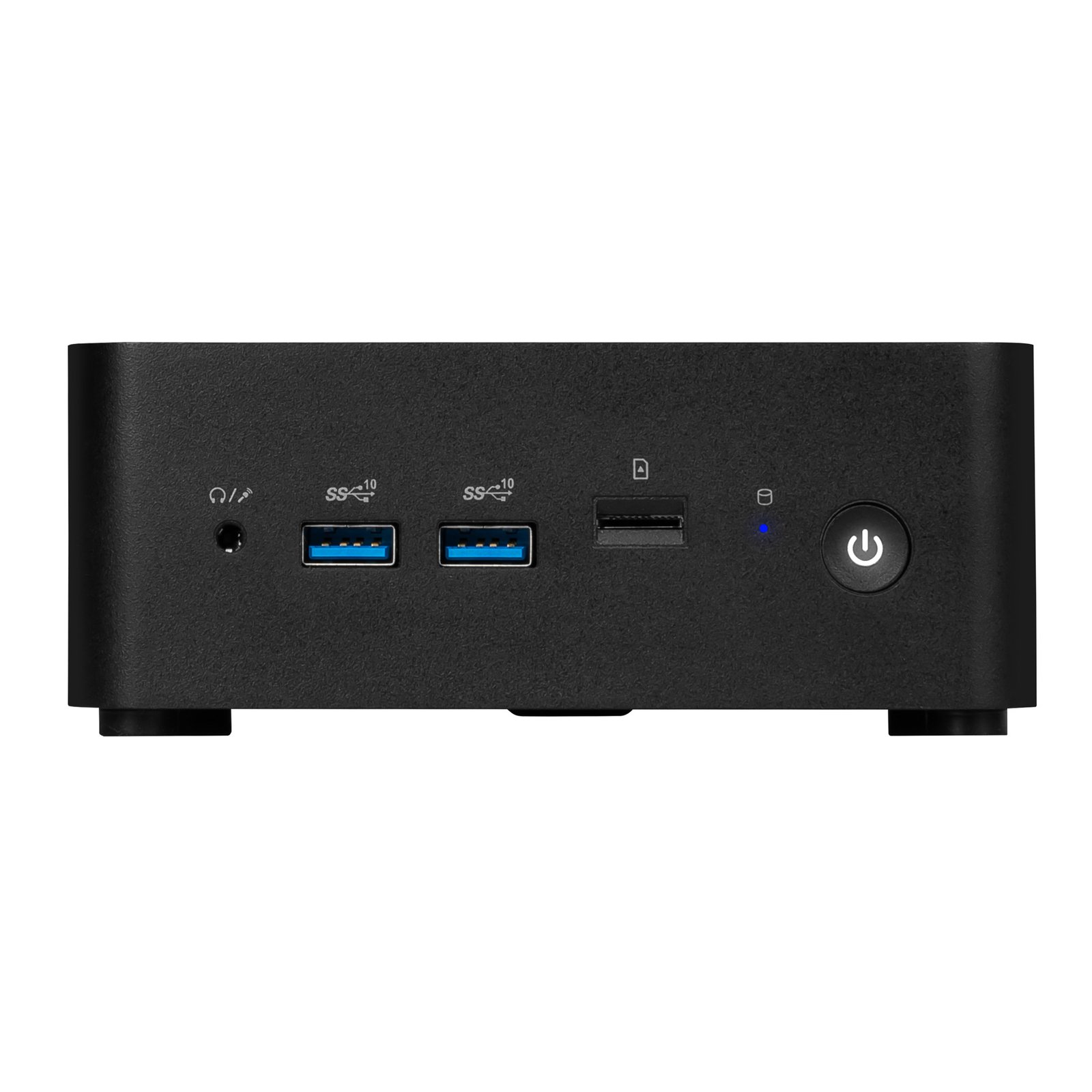

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| DVI port | No |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| Design | |
| Chassis type | 0.84L sized PC |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | Mini PC barebone |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 0.625 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Brand | MSI Systems |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Desktops & Workstations |
