TP-Link

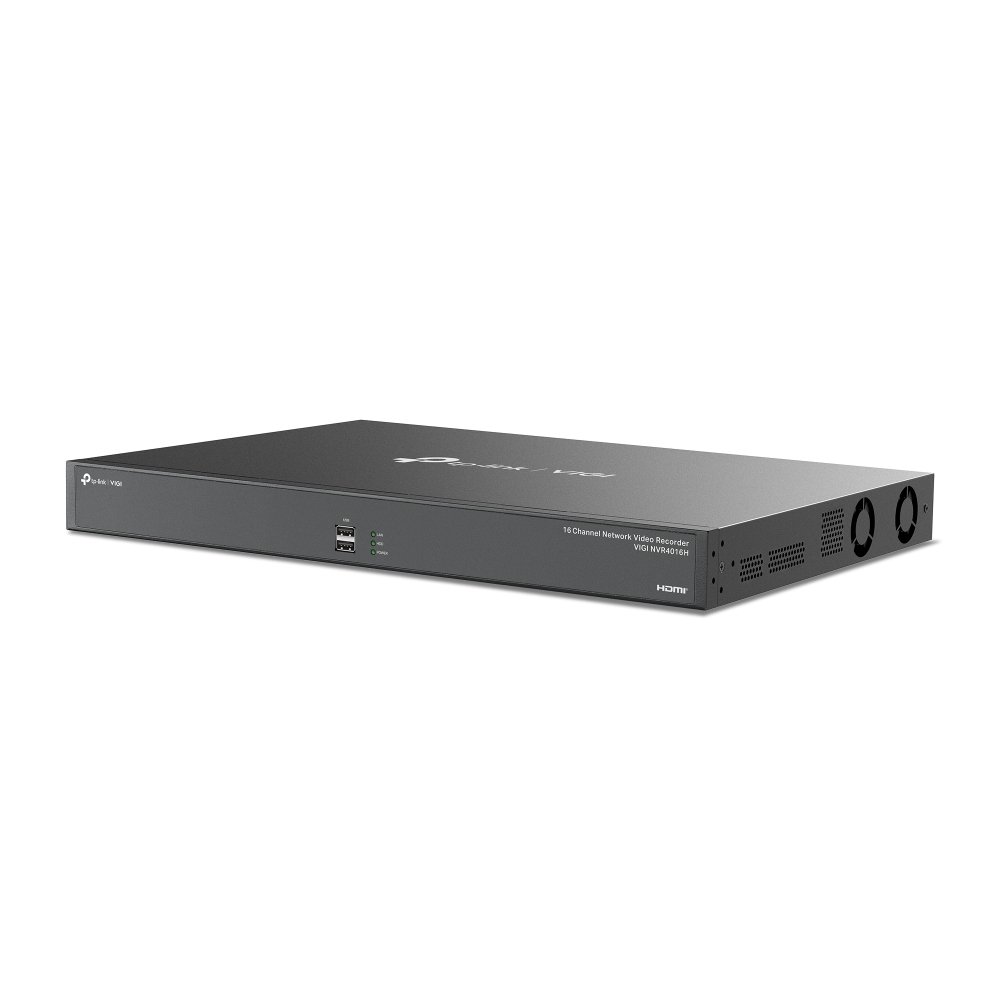

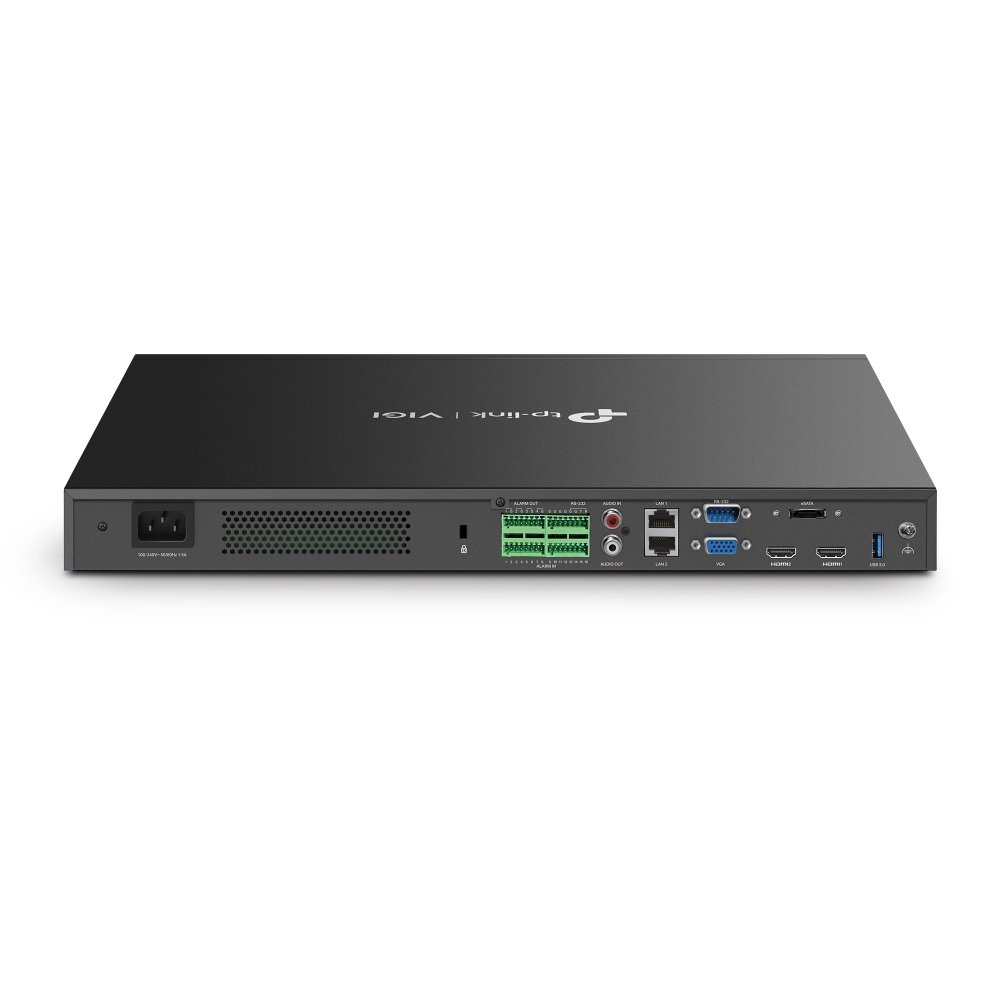

TP-Link VIGI NVR4016H network video recorder Black
CA$482.99
Save 5%
CA$459.85
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
Security Never Shuts Down
16 Channel Network Video Recorder
Feature-Packed Ports for SMB Surveillance
Dual Ethernet Ports Design
Multi-Address Mode
Allows for the implementation of two different gateways
Network Fault-Tolerance
Creates a safeguard or redundancy for your data
Port Aggregation
Realizes bandwidth stack and mutual backup
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
16 Channel Network Video Recorder
Feature-Packed Ports for SMB Surveillance
Dual Ethernet Ports Design
Multi-Address Mode
Allows for the implementation of two different gateways
Network Fault-Tolerance
Creates a safeguard or redundancy for your data
Port Aggregation
Realizes bandwidth stack and mutual backup
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
Product Specifications
| Manufacturer | TP-Link |
|---|---|
| Manufacturer Part Number | VIGI NVR4016H |
| GTIN / Barcode | 8885020623666 |
| Brand Name | TP-Link |
| Product Name | TP-Link VIGI NVR4016H network video recorder Black |
| Mfr. Part Number | VIGI NVR4016H |
|---|---|
| GTIN / Barcode | 8885020623666 |
| Performance | |
| Video input channels | 16 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Audio formats supported | G.711, G.711u, G.726 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Backup function | Yes |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 320 Mbit/s |
| Recording modes | Manual, Schedule |
| Audio system | 2-way |
| Hard drive | |
| HDD capacity | 0 GB |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 64 TB |
| HDD interface | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity | 1 |
| eSATA | Yes |
| RS-232 ports | 1 |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Features | |
| Rack mounting | Yes |
| Reset button | Yes |
| Buzzer off | Yes |
| Product colour | Black |
| Power | |
| Power consumption (max) | 45 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output current | 1.5 A |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4 kg |
| Package width | 440 mm |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 5 kg |
| Packaging content | |
| Packaging content | - Mouse - Installation Guide - Power Cord - HDD Power Cables - HDD Data Cables - Terminal Blocks - Mounting Brackets - Screws - Rubber Feet |
| Brand | TP-Link |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Networking & Communications |
