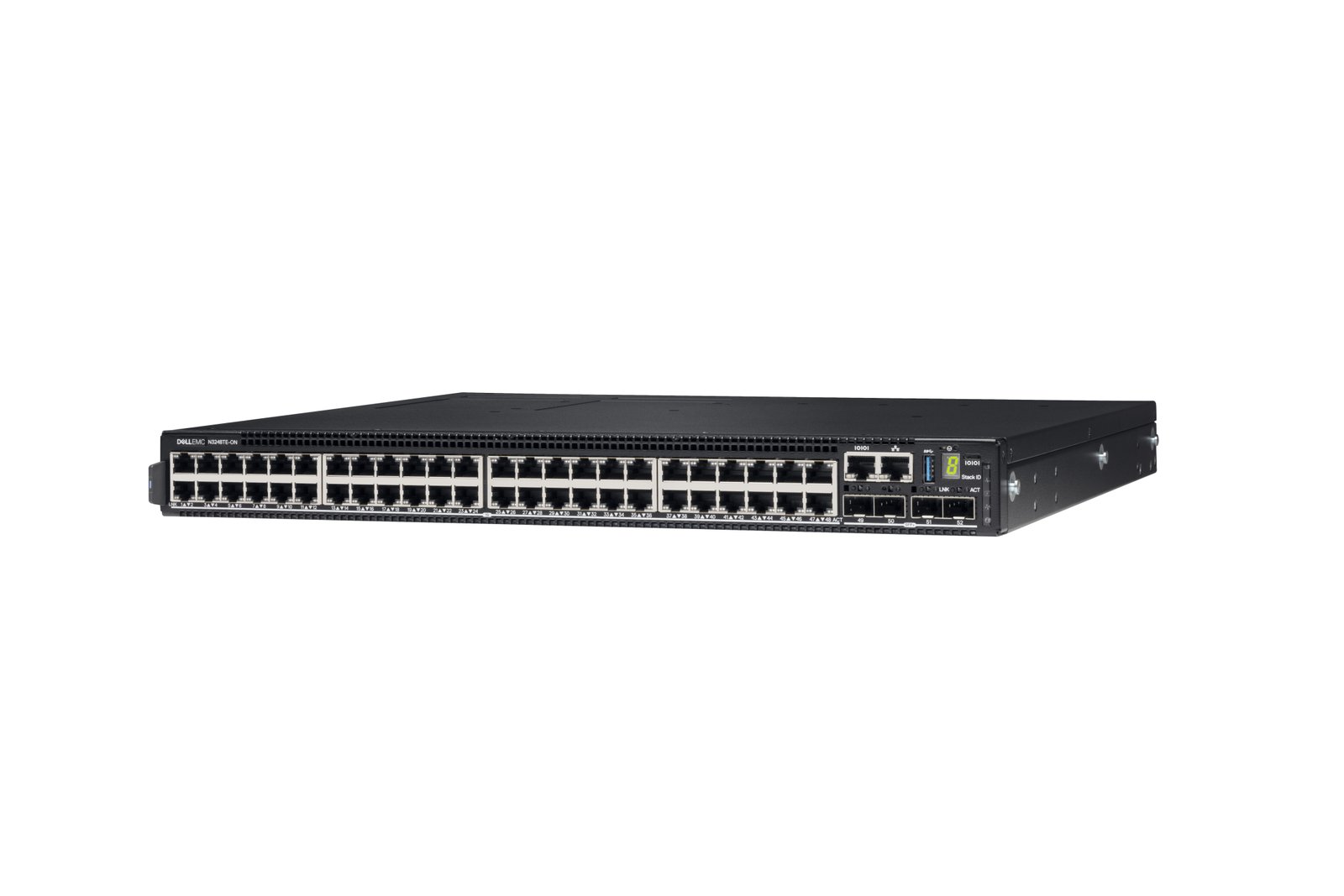

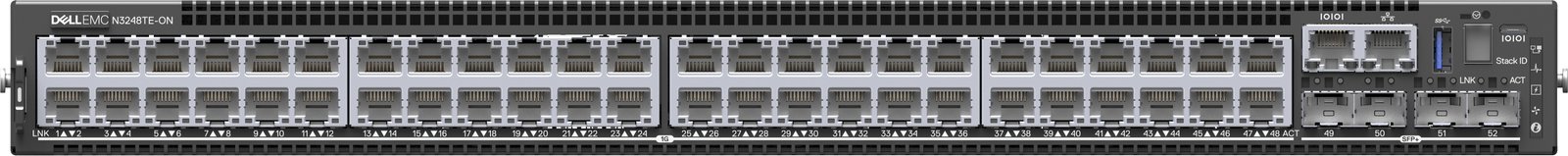

Name: DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black N3248TE-ONF
Brand: Dell
SKU: N3248TE-ONF
Price: 8473.85 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Networking & Communications /Network Switches /DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black

Product Details

Power up your campus access network
Purpose-built 8, 24 and 48 port Multi-Gig and Multi-Gig 802.3bt 90W PoE switches for modern workloads and greater employee productivity.

Product Specifications

Manufacturer	Dell
Manufacturer Part Number	N3248TE-ONF
GTIN / Barcode	5397184363508
Brand Name	Dell
Product Name	DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black

Management features
Mfr. Part Number	N3248TE-ONF
GTIN / Barcode	5397184363508
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Configuring Location Settings (CLI)	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fiber optic connector	QSFP28, SFP28
QSFP28 ports quantity	2
SFP28 ports quantity	4
Power connector	AC-in jack
Network
10G support	Yes
Port mirroring	Yes
Full duplex	Yes
Link aggregation	Yes
VLAN support	Yes
Data transmission
Switching capacity	576 Gbit/s
Forwarding rate	800 Mpps
MAC address table	32000 entries
Security
Access Control List (ACL)	Yes
SSH/SSL support	Yes
Multicast features
Multicast support	Yes
Protocols
Supported network protocols	IPv4 e IPv6
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Ventilation system	Front-to-back airflow
Airflow direction	Front-to-back airflow
Number of fans	3 fan(s)
Performance
Operating system installed	OS6
Compatible operating systems	OS10
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2.22 A
Power consumption (typical)	550 W
Power consumption (max)	550 W
Power cable length	2 m
Power cable connector 1	NBR14136
Power cable connector 2	C13 coupler
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	349.06 BTU/h
Weight & dimensions
Width	434 mm
Depth	400 mm
Height	43.5 mm
Weight	6.99 kg
Packaging content
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
Brand	Dell
Availability	In Stock
Price Currency	CAD
Category	Network Switches
